ROD BUFFER SEAL METRIC

3.150" x 3.760" x 0.232" (80.00 mm x 95.50 mm x 5.90 mm)

H&D SKU: CTC-1505840

Product Availability : On Back Order

$89.03

Qty:

DESCRIPTION

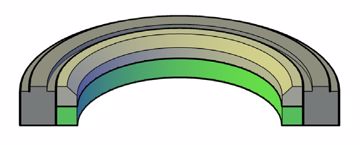

The MNBR profile is a compact rod seal designed to act as a buffer seal for the primary rod seal. Molded in PTFE with a rubber energizer and nylon anti-extrusion ring, this seal absorbs the shock of pressure spikes to protect the primary rod seal. As a buffer seal, the MNBR profile provides a majority of the rod sealing performance while allowing fluid to bypass onto and energize the primary rod seal. Fluid located between the MNBR profile and the rod seal will relieve back into the cylinder upon rod retraction to prevent .

SEAL INFORMATION

Material Type (Primary Seal): 15% GLASS/MOLY-FILLED PTFE

Material Type (Energizer): 70A NITRILE

Material Type (Backup Rings): NYLON

Durometer (Shore D): 67

Temperature Range (F): -40 TO 220

Max Pressure (psi): 5000

Extrusion Gap at Various Pressures (mm):

1,000 PSI: 1.00
3,000 PSI: 0.65
5,000 PSI: 0.50

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µm) - DYNAMIC: 0.1<>0.4

Mating Surface Roughness - Ra (µm) - STATIC: 0.8 MAX

Part Number Definition (Metric): MNBR-(ROD DIAMETER)X(OD)X(SEAL HEIGHT)

Additional Part Number Definition (Metric): 70 X 85.5 X 5.9 = MNBR-70X85.5X5.9

Products specifications

ID (Inch)	3.150
OD (Inch)	3.760
Height (Inch)	0.232
ID (Metric)	80.00
OD (Metric)	95.50
Height (Metric)	5.90
