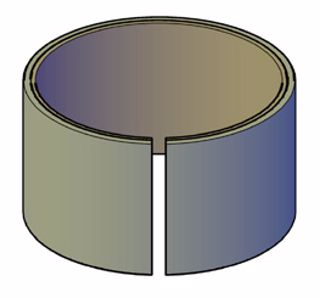

ROD DU BUSHINGS

0.562" x 0.656" x 0.750" (14.27 mm x 16.66 mm x 19.05 mm)

H&D SKU: DU-9-12

Product Availability : Only 6 Left

$2.25

Qty:

DESCRIPTION

DU self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions.

DU bushings are suitable for lubricated applications. Suitable for linear, oscillating and rotating movements.

Constructed of a Steel back, porous Bronze liner, and PTFE/lead overlay.

SEAL INFORMATION

Material Type (Back): STEEL

Material Type (Liner): BRONZE

Material Type (Overlay): PTFE/LEAD

Temperature Range (F): -325 TO 536

Max Speed (ft/sec) DRY: 8.0

Max Speed (ft/sec) LUBRICATED: 16.0

Mating Surface Roughness - Ra (µin) - DRY: 12<>20

Mating Surface Roughness - Ra (µin) - LUBRICATED: 2<>16

Part Number Definition (Inch): DU-(ID X 16)-(HT X 16)

Additional Part Number Definition (Inch): 1"ID X 1" HEIGHT (.062"THICK) = DU-16-16

NOTE: BUSHING THICKNESS DEPENDS ON DIAMETER. PLEASE VERIFY DIMENSION REQUIREMENTS BEFORE ORDERING OR CONSULT AN H&D REPRESENTATIVE IF YOU HAVE QUESTIONS.

Products specifications

ID (Inch)	0.562
OD (Inch)	0.656
Height (Inch)	0.750
ID (Metric)	14.27
OD (Metric)	16.66
Height (Metric)	19.05
