U-CUP ROD METRIC

18.000" x 28.000" x 10.700" (457.20 mm x 711.20 mm x 271.78 mm)

H&D SKU: EU-18X28X10.7

Product Availability : Only 8 Left

$14.24

Qty:

DESCRIPTION

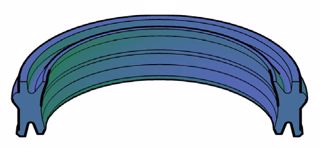

The EU profile is a self locating pneumatic rod wiper/seal combo for piston rods in pneumatic cylinders which combines three functions: sealing, scraping, and fixing.

This single part molding is made of a special polyurethane compound. The benefits of this compound are the excellent wear resistance, low compression set and wide temperature range. All of these combine to give a long life compared to other polyurethanes.

SEAL INFORMATION

Durometer (Shore A): 93

Temperature Range (F): -22 TO 200

Max Pressure (psi): 230

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µm) - DYNAMIC: 0.08<>0.3

Mating Surface Roughness - Ra (µm) - STATIC: 0.8 MAX

Part Number Definition (Metric): EU-(ROD DIAMETER)X(OD)X(HT)

Additional Part Number Definition (Metric): 25 X 35 X 11.2 = EU-25X35X11.2

Products specifications

ID (Inch)	18.000
OD (Inch)	28.000
Height (Inch)	10.700
ID (Metric)	457.20
OD (Metric)	711.20
Height (Metric)	271.78

Alternate Product Codes

MK51-18X28X10.4 (1)
