PISTON CUPS

0.118" x 0.394" x 0.197" (3.00 mm x 10.00 mm x 5.00 mm)

H&D SKU: MDPC-57-010

Product Availability : On Back Order

$8.69

Qty:

DESCRIPTION

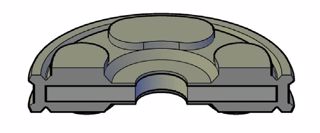

The MDPC-57 is a complete double-acting pneumatic piston with a double cup seal and a vulcanized metal disc support. The MDPC serves three functions: Sealing, guiding and cushioning.

The complete piston profile MDPC-57 offers a simple attachment to the piston rod without additional sealing elements and is corrosion free due to a complete polymer covering. The MDPC-57 also offers low friction and smooth running due to the sealing lip geometry retaining the lubrication film.

The MDPC-57 can be used in pneumatic applications up to 175 PSI pressure.

SEAL INFORMATION

Material Type (Primary Seal): NITRILE

Material Type (Base): ZINC-COATED STEEL PLATE

Durometer (Shore A): 70

Temperature Range (F): -22 TO 220

Max Pressure (psi): 175

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µm) - DYNAMIC: 0.08<>0.3

Mating Surface Roughness - Ra (µm) - STATIC: 0.8 MAX

Part Number Definition (Metric): MDPC-57-(BORE DIAMETER)

Additional Part Number Definition (Metric): 100MM BORE = MDPC-57-100

Products specifications

ID (Inch)	0.118
OD (Inch)	0.394
Height (Inch)	0.197
ID (Metric)	3.00
OD (Metric)	10.00
Height (Metric)	5.00
