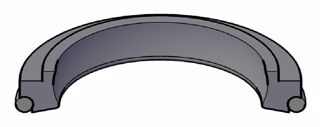

WIPER D-STYLE

4.500" x 5.000" x 0.250" (114.30 mm x 127.00 mm x 6.35 mm)

H&D SKU: D4500-STXE

Product Availability : On Back Order

$70.98

Qty:

DESCRIPTION

The D-STXE wiper is used in applications with a severe side deflection. The radius wiper lip reduces rod seal leakage with equivalent ingression resisteance to a sharp lip wiper. O-ring must be installed for proper performance.

The shell is molded in polyurethane with a Nitrile energizer, ensuring flexibility for installation and performance.

SEAL INFORMATION

Material Type (Primary Seal): POLYURETHANE

Material Type (Energizer): 70A NITRILE

Durometer (Shore A): 95

Temperature Range (F): -65 TO 220

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µin) - DYNAMIC: 4<>16

Mating Surface Roughness - Ra (µin) - STATIC: 32 MAX

Part Number Definition (Inch): D(ROD DIAMETER)-STXE (EX: D4500-STXE FOR 4-1/2" ID)

Products specifications

ID (Inch)	4.500
OD (Inch)	5.000
Height (Inch)	0.250
ID (Metric)	114.30
OD (Metric)	127.00
Height (Metric)	6.35

Alternate Product Codes

STXE-450 (1)
,
DX-4500 (1)
