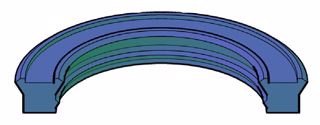

U-CUP ROD METRIC

1.575" x 1.890" x 0.228" (40.00 mm x 48.00 mm x 5.80 mm)

H&D SKU: MUH-40X48X5.8R-2

Product Availability : On Back Order

$11.22

Qty:

DESCRIPTION

The MUH-R-2 seal is a metric compact single-acting rod seal designed for radially limited housings. Designed for standardized housings, amongst others, according to ISO 5597.

The compact design has very high compression so it exhibits very good static and dynamic tightness. This high compression allows for a higher surface roughness in the groove base than other similar rod seals.

This seal features a twin-lip design offering lower friction, improved sealing, primary lip protection and increased seal stability.

SEAL INFORMATION

Durometer (Shore A): 94

Temperature Range (F): -30 TO 230

Max Pressure (psi): 5800

Extrusion Gap at Various Pressures (mm):

2,400 PSI: 0.45
3,800 PSI: 0.35
4,700 PSI: 0.30
5,800 PSI: 0.25

Max Speed (ft/sec): 1.5

Mating Surface Roughness - Ra (µm) - DYNAMIC: 0.05<>0.3

Mating Surface Roughness - Ra (µm) - STATIC: 3.0 MAX

Part Number Definition (Metric): MUH-(ROD DIAMETER)X(OD)X(HT)R-2

Additional Part Number Definition (Metric): 40 X 50 X 10 = MUH-40X50X10R-2

Products specifications

ID (Inch)	1.575
OD (Inch)	1.890
Height (Inch)	0.228
ID (Metric)	40.00
OD (Metric)	48.00
Height (Metric)	5.80

Alternate Product Codes

MRTS-40X48X5.8 (1)
