DESCRIPTION

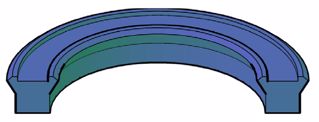

The MUH-R-3 seal is a metric compact single-acting rod seal designed for radially limited housings. Designed for standardized housings, amongst others, according to ISO 5597.
The compact design has very high compression so it exhibits very good static and dynamic tightness. This high compression allows for a higher surface roughness in the groove base than other similar rod seals.
SEAL INFORMATION
Durometer (Shore A): 94
Temperature Range (F): -30 TO 230
Max Pressure (psi): 5800
Extrusion Gap at Various Pressures (mm):
- 2,400 PSI: 0.45
- 3,800 PSI: 0.35
- 4,700 PSI: 0.30
- 5,800 PSI: 0.25
Max Speed (ft/sec): 1.5
Mating Surface Roughness - Ra (µm) - DYNAMIC: 0.05<>0.3
Mating Surface Roughness - Ra (µm) - STATIC: 3.0 MAX
Part Number Definition (Metric): MUH-(ID)X(OD)X(HT)R-3
Additional Part Number Definition (Metric): 40 X 50 X 7.3 = MUH-40X50X7.3R-3
