U-CUP ROD METRIC

3.150" x 3.740" x 0.453" (80.00 mm x 95.00 mm x 11.50 mm)

H&D SKU: MUH-80X95X11.5RB

Product Availability : On Back Order

$16.73

Qty:

DESCRIPTION

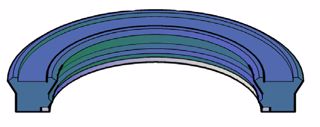

The RB-1 profile is an asymmetrical design rod u-seal which offers superb sealing performance as either a primary or secondary sealing element. The asymmetrical design positions the RB-1 securely in the housing, assuring excellent sealing effect and prevents twisting. The RB-1 also employs a hard plastic ID back-up ring to reduce the possibility of extrusion.

Made from premium polyurethane, the RB-1 offers superior abrasion and wear resistance ensuring maximum operating life. The extrusion resistant material and design are engineered to withstand high pressures (6,000 PSI), and utilizes a preloaded design to ensure effective sealing at low pressures. The nylon back-up ring is located in the heel of the DRUB profile and enhances extrusion protection.

For applications where you require higher pressure resistance and larger extrusion gaps, please use our RB-621 style (Hallite T621).

SEAL INFORMATION

Material Type (Primary Seal): POLYURETHANE

Material Type (Backup Rings): NYLON

Durometer (Shore A): 92

Temperature Range (F): -40 TO 230

Max Pressure (psi): 6000

Extrusion Gap at Various Pressures (mm):

1,000 PSI: 0.80
3,000 PSI: 0.40
5,000 PSI: 0.30
7,500 PSI: 0.25

Max Speed (ft/sec): 1.6

Mating Surface Roughness - Ra (µm) - DYNAMIC: 0.3 MAX

Mating Surface Roughness - Ra (µm) - STATIC: 1.6 MAX

Part Number Definition (Metric): MUH-(ROD DIAMETER)X(OD)X(HT)RB

Additional Part Number Definition (Metric): 40 X 50 X 10 = MUH-40X50X10RB

Products specifications

ID (Inch)	3.150
OD (Inch)	3.740
Height (Inch)	0.453
ID (Metric)	80.00
OD (Metric)	95.00
Height (Metric)	11.50

Alternate Product Codes

MRTSB-80X95X11.5 (1)
