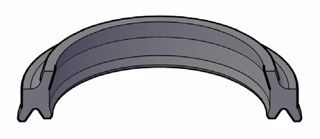

WIPER SNAP-IN METRIC

0.441" x 0.756" x 0.177" (11.20 mm x 19.20 mm x 4.50 mm)

H&D SKU: MW-11.2X19.2X4.5H

Product Availability : Only 2 Left

$2.09

Qty:

DESCRIPTION

The MW-H metric wiper is a double-acting wiper seal with both a wiper lip excluding contaminants from the hydraulic system and a beveled-lip, u-cup portion serving as a secondary safeguard against leakage past the primary rod seal. (H-wipers are not pressure seals).

The shell is molded in polyurethane for light to medium duty hydraulic applications.

SEAL INFORMATION

Durometer (Shore A): 95

Temperature Range (F): -40 TO 220

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µm) - DYNAMIC: 0.1<>0.4

Mating Surface Roughness - Ra (µm) - STATIC: 0.8 MAX

Part Number Definition (Metric): MW-(ROD DIAMETER)X(OD)X(BASE HEIGHT)H

Additional Part Number Definition (Metric): 40 X 48 X 5 = MW-40X48X5H

Products specifications

ID (Inch)	0.441
OD (Inch)	0.756
Height (Inch)	0.177
ID (Metric)	11.20
OD (Metric)	19.20
Height (Metric)	4.50

Alternate Product Codes

MSWH-11.2X19.2X4.5 (1)
