WEAR RING METRIC

9.843" x 11.024" x 0.591" (250.00 mm x 280.00 mm x 15.00 mm)

H&D SKU: MWRA-250X280X15-L

Product Availability : Only 2 Left

$105.95

Qty:

DESCRIPTION

Manufactured in polyacetal resin, the MWRA-L metric wear ring is extremely versatile, offering very low friction and excellent resistance to abrasion and wear. The material's natural resistance to water makes it an ideal choice for use in pneumatic and water-based hydraulic applications.

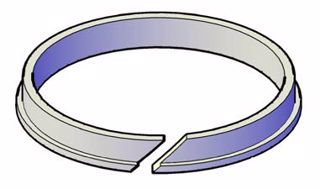

This L-shaped wear ring is designed specifically for use in rod housings.

Primarily a British design, this L-shaped ring can be installed individually in an L-shaped groove or together back-to-back in a T-shaped groove.

SEAL INFORMATION

Temperature Range (F): -50 TO 230

Extrusion Gap (mm):

WITH SEAL: AS REQUIRED BY THE SEAL EXTRUSION GAP
NO SEAL: 1.00

Max Speed (ft/sec): 15.0

Mating Surface Roughness - Ra (µm) - DYNAMIC: 0.1<>0.4

Mating Surface Roughness - Ra (µm) - STATIC: 125 MAX

Part Number Definition (Metric): MWRA-(ROD DIAMETER)X(OD)X(WIDTH)-L

Additional Part Number Definition (Metric): 60 X 71 X 16 = MWRA-60X71X16-L

Products specifications

ID (Inch)	9.843
OD (Inch)	11.024
Height (Inch)	0.591
ID (Metric)	250.00
OD (Metric)	280.00
Height (Metric)	15.00

Alternate Product Codes

4026200 (1)
