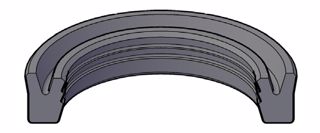

U-CUP ROD INCH

0.500" x 0.750" x 0.219" (12.70 mm x 19.05 mm x 5.56 mm)

H&D SKU: UH-12500500218R-5

Product Availability : Only 1 Left

$21.69

Qty:

DESCRIPTION

The R-5 multi-lip rod u-seal combines the pressure-compensating, uni-directional characteristics of a u-seal with the multi-lip sealing effectiveness of compression-type stacked packings. The R-5 style utilizes several sealing lip edges for dry rod performance while minimizing friction. The multi-lip design maintains a critical sealing edge even though increasing pressure moves the line of contact down toward the heel.

The R-5 is made from premium urethane material ensuring flexibility for installation and high/low pressure performance.

SEAL INFORMATION

Durometer (Shore A): 93

Temperature Range (F): -40 TO 200

Extrusion Gap at Various Pressures (in):

2,400 PSI: 0.024
3,750 PSI: 0.020
5,000 PSI: 0.016

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µin) - DYNAMIC: 4<>16

Mating Surface Roughness - Ra (µin) - STATIC: 32 MAX

Part Number Definition (Inch): UH-(CS)(ID)(HT)R-5

Additional Part Number Definition (Inch): 2 X 2-1/2 X 3/8 = UH-25002000375R-5

Products specifications

ID (Inch)	0.500
OD (Inch)	0.750
Height (Inch)	0.219
ID (Metric)	12.70
OD (Metric)	19.05
Height (Metric)	5.56

Alternate Product Codes

HMU12-0.50-21U (1)
