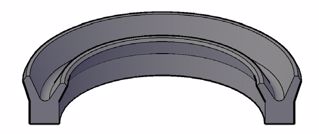

U-CUP ROD INCH

4.750" x 5.625" x 0.750" (120.65 mm x 142.88 mm x 19.05 mm)

H&D SKU: UH-43704750750R-4

Product Availability : On Back Order

$29.61

Qty:

DESCRIPTION

The R-4 u-cup is a specialized rod seal design, developed from the standard symmetrical u-cup. It assures improved sealing performance due an interference fit in the groove that prevents movement of the seal during cylinder operation. With an improved lip design, the dynamic sealing lip has a heavier cross-section for improved high pressure capability.

SEAL INFORMATION

Durometer (Shore A): 92

Temperature Range (F): -40 TO 195

Max Pressure (psi): 5000

Extrusion Gap at Various Pressures (in):

1,500 PSI: 0.024
3,000 PSI: 0.012
5,000 PSI: 0.006

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µin) - DYNAMIC: 4<>16

Mating Surface Roughness - Ra (µin) - STATIC: 32 MAX

Part Number Definition (Inch): UH-(CS)(ID)(HT)R-4

Additional Part Number Definition (Inch): 2 X 2-1/2 X 3/8 = UH-25002000375R-4
