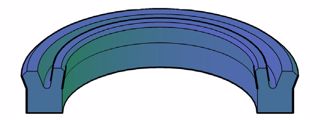

U-CUP PISTON INCH

3.000" x 4.000" x 0.500" (76.20 mm x 101.60 mm x 12.70 mm)

H&D SKU: UH-50003000P-4

Product Availability : On Back Order

$69.01

Qty:

DESCRIPTION

The P-4 u-cup is a specialized piston seal design, developed from the standard symmetrical u-cup. It assures improved sealing performance due an interference fit in the groove that prevents movement of the seal during cylinder operation. With an improved lip design, the dynamic sealing lip has a heavier cross-section for improved high pressure capability.

SEAL INFORMATION

Durometer (Shore A): 92

Temperature Range (F): -40 TO 195

Extrusion Gap at Various Pressures (in):

1,500 PSI: 0.024
3,000 PSI: 0.012
5,000 PSI: 0.006

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µin) - DYNAMIC: 4<>16

Mating Surface Roughness - Ra (µin) - STATIC: 32 MAX

Part Number Definition (Inch): UH-(CS)(ID)(HT)P-4

Additional Part Number Definition (Inch): 2 X 2-1/2 X 3/8 = UH-25002000375P-4

Products specifications

ID (Inch)	3.000
OD (Inch)	4.000
Height (Inch)	0.500
ID (Metric)	76.20
OD (Metric)	101.60
Height (Metric)	12.70

Alternate Product Codes

PU50-3.00-50 (1)
