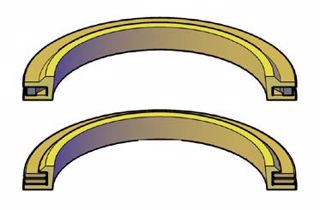

METAL & TEFLON SCRAPERS

1.000" x 1.272" x 0.104" (25.40 mm x 32.31 mm x 2.64 mm)

H&D SKU: AN-09-M2

Product Availability : Only 3 Left

$28.46

Qty:

DESCRIPTION

Style AN-M2 scrapers conform to MS28776-M2 sizes and are manufactured in brass. The scrapers are suitable for extreme environments with aggressive contaminants.

The unique spring-loaded construction and ductile material result in close rod contact even when coping with rod ovality and helix grinding patterns.

SEAL INFORMATION

Temperature Range (F): -30 TO 300

Max Speed (ft/sec): 3.0

Mating Surface Roughness - Ra (µin) - DYNAMIC: 4<>16

Mating Surface Roughness - Ra (µin) - STATIC: 63 MAX

Part Number Definition (Inch): AN-(2-DIGIT NUMBER)-M2

Additional Part Number Definition (Inch): 1" AN-WIPER = AN-09-M2

Products specifications

ID (Inch)	1.000
OD (Inch)	1.272
Height (Inch)	0.104
ID (Metric)	25.40
OD (Metric)	32.31
Height (Metric)	2.64

Alternate Product Codes

MS28776-9 (1)
